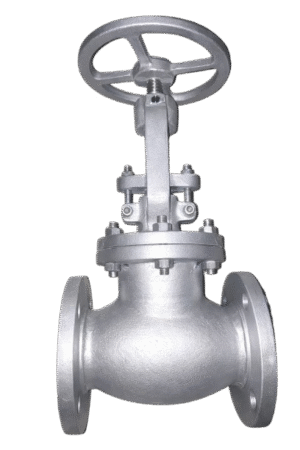

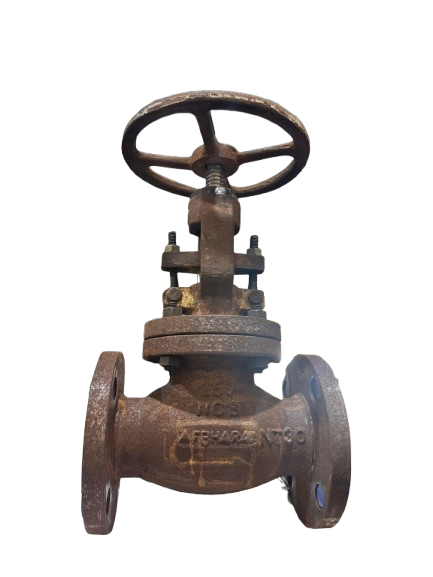

Globe Valves
As a premier name among industrial valve manufacturers in India, A F Bharat Valves is driven by a vision to design and manufacture globe valves that strictly adhere to international quality and safety norms.
As a leading name in flow control solutions, A F Bharat Valves specializes in precision-engineered Globe Valves designed for superior linear motion control. Whether you need to start, stop, or precisely regulate fluid flow, our valves are built to deliver high control accuracy and robust sealing in the most demanding industrial piping systems.
Our Globe Valves are designed with a specialized right-angle seal between the seat and the disk. This meticulous engineering ensures a tighter closure, effectively minimizing leakage and providing the reliable throttling and flow modulation required for critical operations
Product Details
Our disc configurations are optimized for structural integrity:
- For NPS < 2: Features a high-strength solid disc for reliable shut-off.
- For NPS ≥ 2: Utilizing Forged or Cast discs to withstand higher flow velocities and pressures.
Body-to-Bonnet Integrity
To ensure zero-leakage performance across various pressure gradients:
- Class 150 to 600: Utilizes a robust Bolted Bonnet design for ease of maintenance.
- Class 900 & Above: Features a Pressure Seal Bonnet design, engineered specifically for high-pressure and high-temperature industrial applications.
High-Precision Stem & Packing
The stem is a critical rotating component in our linear motion valves. Each stem is machined from a single piece with ACME threads and a mirror-smooth surface finish. This design minimizes friction and maximizes the integrity of the packing seal, effectively reducing low fugitive emissions.
Superior Seat Faces
For a bubble-tight seal, our seat faces are lapped to a smooth finish. Depending on your piping requirements, we offer:
- Standard integrated seating.
- Optional renewable threaded seats or welded seats customized to client specifications.
Advanced Back Seat Design
Every Bharat Valves globe valve includes a back seat design to allow for packing gland replacement under pressure:
- Carbon Steel Valves: Fitted with a high-durability removable back seat.
- Stainless Steel Valves: Feature an integral machined back seat within the bonnet for enhanced corrosion resistance.
High-Performance Gaskets & Sealing
We use industry-leading sealing technology to prevent leaks:
- Class 150 to 600: Standard Stainless Steel + Flexible Graphite spiral wound gaskets.
- Class 600 (Optional): Ring Type Joint (RTJ) gaskets for enhanced safety.
- Class 900 & Above: Specialized pressurized seal designs for extreme conditions.
Technical Specification
Additional Information
| SIZE | 15MM to 900MM above on request. |
|---|---|
| END | FE / SE / SW / BW |
| RATING/CLASS | 150 / 300 / 600 / 1500 / 2500 / PN 10 – PN 16 |
| OPERATION | Manual Hand Wheel / Gear / Electrical Actuator / Pneumatic Actuator / Clinder |
| MOC | WCb, SS, FORGE STEEL, ALLOY STEEL |
